The badges record intruding incident information including ID / time / duration.
Only one UWB-beacon needed to receive the contact traces from badges when one enters or leaves the facility.
The solution is able to be adapted later on to personnel tracking or added with item tracking feature. When updating badges to RTLS solution, beacon network should be installed as an addition. Otherwise the badges can be updated remotely.

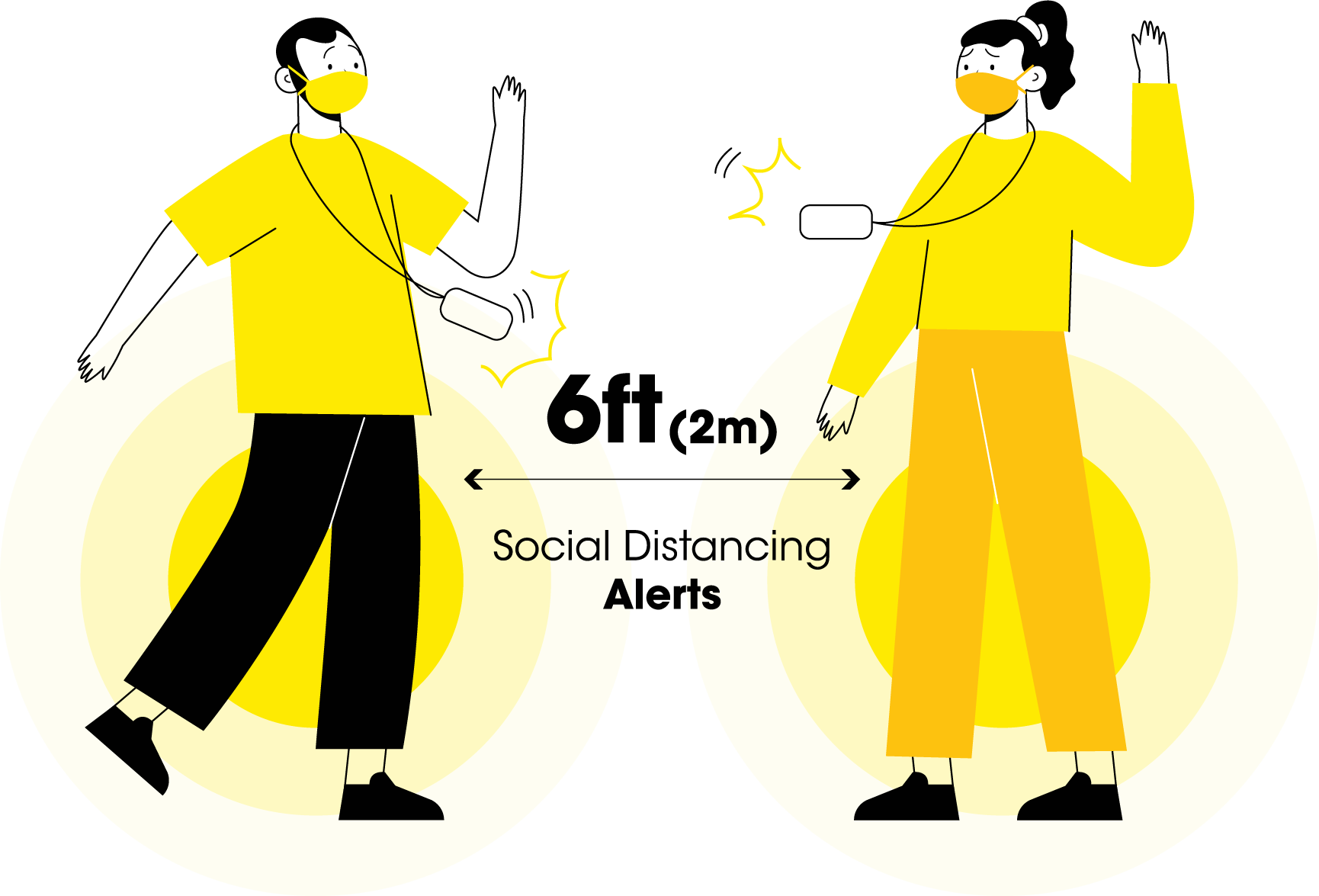

Noccela ID Badge is a UWB based proximity detection device perfect for social distancing and contact tracing applications. The Badges generate alerts when close to each other and send the contact data to server via a UWB beacon for Contact Tracing.
Contact Tracing:
identity contacts and prioritize based on risk (proximity + duration)
1. Priority
Contacts:
High risk of infection (sustained contact 5-10 minutes)
2. Priority
Contacts:
High risk of secondary infection (sustained contact 5-10 min. with
Priority 1
Contacts)
3. Priority
Contacts:
Medium risk of infection (Less than 5 min)
Action Plan:
Develop individualized care, test and quarantine plan for Priority 1-3 contacts
The Finnish Institute of Occupational Health (FIOH) is testing a new innovative system in response to the challenge companies and workplaces face due to the COVID-19 pandemic
Technology will have a permanent role in managing epidemics
Ensuring interrupted operations has for long been central to risk management in factories, hospitals, production sites and various critical corporate functions such as logistics hubs. Covid-19 underlines that epidemics containment must be a part of the risk management toolkit.
Starting from
Item | Description |
---|---|
Overview | |
Product Name | VUT-201 UWB ID Badge |
Standard | IEEE802.15.4-2011 UWB compliant |
Recharging Interface | USB DCP charging with Type C connector and/or pogo pins |
Accuracy | 10 cm |
Button | Single tactile button to reset the device |
Recharging Voltage | 4.2V |
Instant Power Consumption | Less than 500mW |
Standby Time | >15 days |
Refresh Time | Less than Second |
LED | LED Three Color (RGB) |
Buzzer | 1 Piezoelectric buzzer(84dB) |
Sensors | 3-axis Accelerometer |
Battery Capacity | 550mAh Li-Polymer Battery (IEC 62133-2 compliant) |
Battery Life | up to 4 days (active state) on a single charge (considering proximity alert time of 6 minutes every hour) |
Charging Time | 2.2 hours |
Peer-to-peer Proximity Alerts | |
Between 7.76 ft. to 6.13 ft. Can be defined separately. | Orange LED Indication + beeps every second (1 Hz) |
less than 6.13 ft. | Red LED Indication + beeps every second (1 Hz) |
RF(UWB) | |
Working Frequency | 6489.6MHz |
Physical Rate | 110 Kbps 850 Kbps 6.8 Mbps |
Output Power(25° C) | -41dBm/MHz |
Channel Frequency Width | 500MHz |
Antenna Type | Integral |
Antenna gain | 0.5dBi |
Software | |
UWB | ToF |
UWB Range | 50m@-41dBm/MHz,6.8Mbp,LOS |
Sleep | Inactivity (no motion) for 60 seconds - configurable |
Upgrade | OTA |
Configuration | OTA |
Physical Specification | |
Size(mm) | 114.3 x 58 x 8 mm |
Weight(g) | 42g |
Circumstances | |
Temperature | Operating: 0°C to 50°C / Storage: -20 °C to + 60 °C |
Humidity | 0%~90% without condensation |
Water Proof | IP67 |
RoHs | Yes |
